MUNCIE M20 4 SPEED * FULLY REBUILT * READY TO BOLT IN AND USE * M20 * M21 * M22 *

FOR SALE

Muncie M20 4 speed transmission.

Rebuilt internals from an M20 into an M21 casing due to damage to it’s original case.

Fully rebuilt.

New bearings, bushes, shims, washers, synchros, hubs, sliders, 1″ shaft, rollers, 3rd gear, 4th gear, cluster gear, gaskets and seals.

Ready to bolt in and use. Just add oil !

Stamped code on this casing P9H13B : August 13th 1969 M21

Partial VIN on this casing: 19S729759

Casing 3925660

Tail housing 3857584, passenger side speedo drive

Side cover 3952648 c/w TCS switch on 3rd/4th

10 spline input shaft with two rings

27 spline output shaft

Ratio: 2.52 / 1.88 / 1.46 / 1.00 / 3.11 : ‘A’ ratios

SHIFTER NOT INCLUDED IN SALE OF TRANSMISSION! Shifters are available at extra cost.

An M21 is also available and an M22 will be available in April 2021.

Share

Chevrolet Mercruiser 4.3 V6 Vortec Engine

4.3 CHEVROLET V6 ENGINE FOR REBUILD OR SPARES

Vortec version with balance shaft

Used in Chevrolet Astro and C10 pickup trucks as well as Marinised versions by Mercruiser

Block casting number 14099090

Complete with accessories, distributor, exhaust manifolds, flexplate.

6 bolt plastic timing cover with crank position sensor.

Share

LAKEWOOD CHROME BELL HOUSING * McLEOD FLYWHEEL & CLUTCH * FOR SBC & BBC

CUSTOM CHROMED STEEL Lakewood Safety bell housing to fit small and big block Chevrolet

Complete with scatter shield mid-plate and all hardware/fasteners.

McLeod 460231 steel flywheel with 168 teeth.

McLeod 360531 clutch cover and 260171 Multi Spline centre plate.

McLeod clutch and flywheel bolts

McLeod release lever

This bell housing is designed to fit both small and big block Chevrolet engine’s to Muncie 4 speed, Borg Warner T10 and Super T10 and Saginaw 4 speed. Could quite easily be modified to fit other transmissions.

These parts are not new, they were purchased many years ago but not used, the vehicle they were intended for has since been sold.

Share

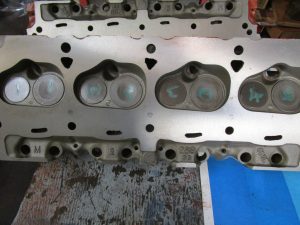

USED CYLINDER HEADS ^ CHEVROLET ^ PONTIAC ^ CHRYSLER ^ FORD ^ BUICK

WE HAVE MANY USED CYLINDER HEADS AVAILABLE

SOME CAN BE USED AS THEY ARE AND SOME NEED REFURBISHMENT, NEW SEATS OR GUIDES ETC. WE CAN DO THIS FOR YOU IF REQUIRED.

CONTACT US THROUGH THE WEBSITE OR PHONE 07710 623045 FOR A PRICE

WE ARE BASED IN NORWICH, NORFOLK, UNITED KINGDOM.

ALTHOUGH IT MAY SAY WHICH CUBIC INCH ENGINE THE HEAD WAS ORIGINALLY FITTED TO, USUALLY ALL OF THE SMALL BLOCK CHEVROLET HEADS ARE INTERCHANGEABLE.

THEREFORE, IT MAY SAY THE HEAD WAS FITTED TO THE 305CI CHEVROLET, IT WILL STILL FIT THE 350 AND 400 AND ALSO THE EARLY 283 AND 327.

IF YOU ARE UNSURE OF THE APPLICATION, PLEASE ASK, WE ARE HERE TO HELP.

IF USING A 350 CYLINDER HEAD ON A 400 EXTRA STEAM HOLES NEED TO BE DRILLED INTO THE HEAD USING A HEAD GASKET AS A TEMPLATE. WE CAN DO THIS FOR YOU IF NECESSARY.

CHECKING THROUGH OUR STOCK OF BIG BLOCK CHEVROLET HEADS SOON SO WATCH FOR AN UPDATE OR CALL US IF THAT’S WHAT YOU ARE LOOKING FOR.

SIS = SCREW IN ROCKER STUDS
G/P = PUSH ROD GUIDE PLATES FITTED
W/A = WITH ACCESSORY BOLT HOLES
C/BOLT = CENTRE BOLT VALVE COVER FITTING, SBC ONLY. AS OPPOSED TO PERIMITER BOLT FIXING.
G/WRENCH = GOODWRENCH CRATE MOTOR HEADS
N/K = NOT KNOWN. CC OF HEAD CHAMBER NOT KNOWN.
—————————————————————————————
CHEVROLET SMALL BLOCK HEADS

We have several pairs of early Chevrolet ‘POWER PACK’ heads available. (no accessory bolt holes)

—————————————————————————————

Share

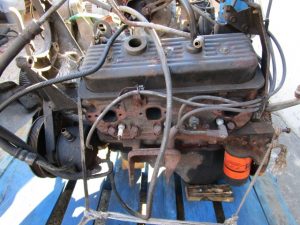

CHEVROLET 262CI 4.3 V6 COMPLETE ENGINE MERCRUISER VOLVO PENTA

CHEVROLET V6 also used by Mercruiser

As used in various Chevrolet pickups and Astro vans

262ci, 4.3 litre

Believed to be 1992

Came out of a running vehicle, could be used as is but I’m sure it would benefit from a refresh or rebuild.

Block casting number 10172756

Head casting number 10144103 (non Vortec)

Single piece rear seal

Single point injection

12 bolt intake manifold

This engine does not have a balance shaft
——————————————————————–
The Chevrolet 90° V6 family of V6 engines began in 1978 with the Chevrolet 200 cu in (3.3 L) as the base engine for the all new 1978 Chevrolet Malibu. The original engine family was phased out in early 2014, with its final use as the 4.3 L (262 cu in) V6 engine used in Chevrolet and GMC trucks and vans. Its phaseout marks the end of an era of Chevrolet small-block engine designs dating back to the 1955 model year. A new Generation V 4.3 L (262 cu in) V6 variant entered production in late 2013, based on the LT1 small block V8 used in the 2014 Chevrolet Silverado

Share

FORD 289 * 302 * IRON HEADS * C60E* 1966* FULLY REFURBISHED & READY TO USE

FOR SALE

Fit 289ci and 302ci small block Ford.

1 pair of small block Ford iron cylinder heads.
Casting C60E
Date codes 6D15 and 6D30. 15th and 30th of April 1966

Chambers are approximately 54cc

Refaced
Valves and seats cut and lapped
Guide inserts fitted as necessary
Media blasted clean.

Valve guide tops can be cut to accept Comp Cams positive stop stem seals if required.

Valve springs, retainers and locks can be supplied dependant on which cam you’re using.

A lovely usable pair of early heads.

These heads have the Thermactor holes so can be used with the Thermactor system or they can be plugged.

£500 plus shipping.

Share

3748772 SBC 1958 BIG VALVES SMALL CHAMBER REBUILT & IN GREAT SHAPE

3748772 Small block Chevrolet cylinder heads

Originally fitted to the 283ci small block Chevrolet.

Date codes G 15 58 and G 21 58, July 15th and 21st 1958

These heads will fit all of the small block Chevrolet range from 265ci to 400ci.

1.94″ Intake valves and 1.6″ Exhaust.

64cc chambers

The bowls under the larger than standard valves have been pocket ported and blended.

Resurfaced to 80 microns RA.

New 1.94″ intake valves

Guide inserts as necessary

Guide tops machined to .500″ for Competition Cams Teflon positive stop stem seals.

Pressure tested

Great heads for the old school look.

These heads do not have accessory bolt holes!

Share

3973487 SBC HIGH PERFORMANCE HEADS 1970 330HP REBUILT AND READY TO USE

One pair of 3973487 heads for small block Chevrolet

They will fit 283, 302, 305, 307, 327, 350 and 400.

LT1 high performance heads

Date codes H 11 0 and H12 0, August 11th and 12th 1970.

1.94″ Intake valves and 1.5″ exhaust.

75cc chambers

Resurfaced to 80 microns RA

Pressure tested

Guides replaced as necessary

Valves and seats cut and lapped

Valve guide tops machined to .500″ for Competition Cams Teflon positive stop stem seals

Can be supplied with new springs, retainers and locks suitable for your camshaft.

Share

FLYWHEELS AND FLEXPLATES* CHEVROLET*PONTIAC*BUICK*OLDSMOBILE* NEW & USED

We have many new and used flywheels and flexplates available.

All used items are in good usable condition.

FLYWHEELS

BUICK 231ci V6 FITS 3.8 AND 4.1, CASTING NUMBER 1263279-2 DATE CODE 1158, USED

SBF 157T, REMOVED FROM A MARINE 351W, CASTING NUMBER C6ZE 6360-A DATE CODE 2E24,
STAMPED NUMBER C7ZEAB, USED

ONE UNKNOWN ODDBALL FLYWHEEL, 144T, FACE DIAMETER 13 1/4″, OVERALL DIAMETER 14 9/16″, CENTRE HOLE 1.570″, 6 BOLT CRANKSHAFT HUB, USED

FLEXPLATES
SBC 153T FOR TWO PIECE REAR SEAL FRA 112 INTERNAL BALANCE NEW
SBC 168T FOR TWO PIECE REAR SEAL, NEW AND USED
SBC 168T FOR ONE PIECE REAR SEAL, NEW AND USED
SBC 168T FOR 2 PIECE REAR SEAL 383 STROKER AND 400CI, EXTERNAL BALANCE, USED BUT AS NEW.
SBC 139T FOR TWO PIECE REAR SEAL TO BE USED WITH 10 TOOTH STARTER MOTOR, USED
BBC 168T FOR TWO PIECE REAR SEAL WITH BALANCE WEIGHT, NEW AND USED

FORD 157T: 28oz NEW
FORD 164T: 28oz 2 PIECE REAR SEAL, USED
FORD 164T: 50oz PART NUMBER F209-300 FOR 4R70W, AODE, C6 AND C4. NEW

AODE F209 300 50oz
4R70W
264 teeth


FORD 164T: 50oz 1 PIECE REAR SEAL, USED

BUICK 166T: 400, 430, 455 EXTERNAL BALANCE, USED

OLDSMOBILE 166T: 350, 400, 455 EXTERNAL BALANCE, USED

Share

CORVETTE WINTERS DUAL QUAD INTAKE WITH CARTER WCFB CARBURETTORS

FOR SALE

3739653 intake dated 12 9 59

1957 to 1961 Corvette 2 x 4 intake

ORIGINAL CORVETTE DUAL FOUR BARREL INTAKE BY WINTERS COMPLETE WITH DUAL CARTER WCFB CARBURETTORS

Intake and carburettors came off an up and running 283ci C1 Corvette.

The intake manifold is in excellent condition, it has had a repair at the front left corner, see photographs.

This Offenhauser intake will fit all small block Chevrolet V8 engines up to 1986 and later if fitted with the early heads. 265, 283, 305, 327, 350, 377, 383, 400ci. Corvette, classic American, hot rods……..

Share
